Model 374A

191,400
2,871 ポイント
お取り寄せ(お問い合わせ時点で納期をご案内致します)
ハッシュタグ

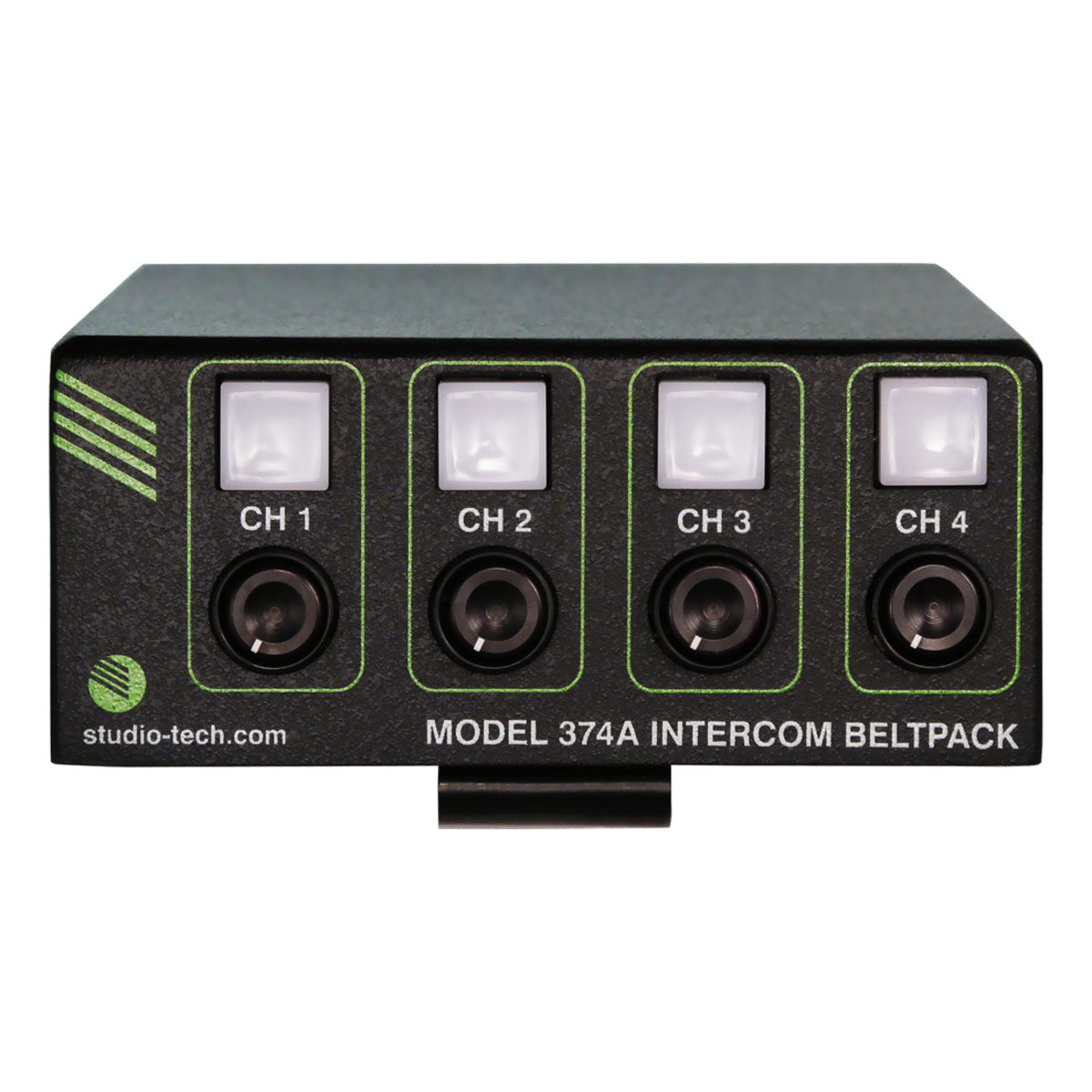

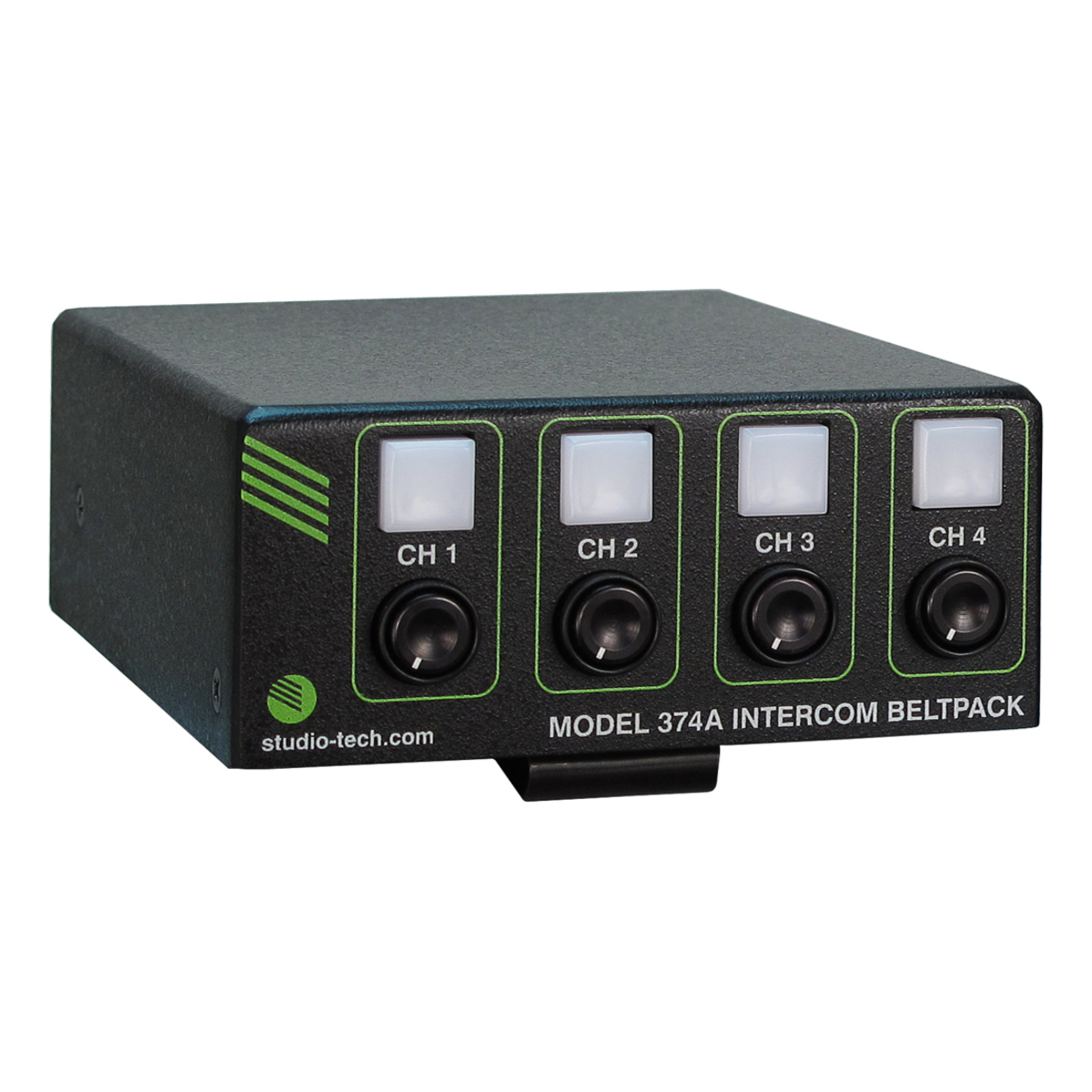

Dante対応ベルトパック(4チャンネル LISTEN/TALKボタン搭載 5ピンXLRメス)

Model 374Aは、従来のパーティーライン・インカム・ユーザーデバイスが提供する機能から始まり、Dante® audio-over-ethernetが提供する高度なパフォーマンスと柔軟性に加えて、様々な新機能を追加している製品です。

4つの独立したトーク/リスニングチャンネルを持つModel 374Aは、一般的なシングル/デュアルチャンネルのパーティーラインデバイスと、常設のマルチチャンネルインカムパネルとの間のギャップを埋めることができます。4チャンネルの高品質なパーティーラインインカムを、コンパクトで使い勝手の良いパッケージで実現しました。

スタッフコメント

特長

・Dante audio-over-Ethernet テクノロジー

・4系統の独立したTALK/LISTENチャンネル

・ダイナミックマイクおよびエレクトレットマイク対応

・5ピンXLRメス端子

・自由度の高い設定メニュー

・高音質設計

・設定はSTcontrollerアプリケーションを使用

・AES67およびDante Domain Manager対応

・PoEによる電源供給

製品仕様

Power Source:・Power-over-Ethernet (PoE): class 1 (very low power, ≤3.84 watts) per IEEER 802.3af
Network Audio Technology:・Type: Dante audio-over-Ethernet
・AES67-2013 Support: yes
・Dante Domain Manager (DDM) Support: yes
・Bit Depth: up to 24
・Sample Rate: 48 kHz
・Number of Transmitter (Output) Channels: 4
・Number of Receiver (Input) Channels: 4
・Dante Audio Flows: 4; 2 transmitter, 2 receiver
Network Interface:・Type: 100BASE-TX, twisted-pair Ethernet, Power-over-Ethernet (PoE) supported
・Data Rate: 100 Mb/s (10 Mb/s and 1000 Mb/s "GigE" Ethernet not supported)
Audio Channels・4 talk, 4 listen
Microphone Input:・Compatibility: dynamic or electret (low-voltage DC-powered) microphones
・Type: unbalanced
・Electret Microphone Power: 5 volts DC via 2.21 k resistor, selectable on/off
・Gain, configured for dynamic microphones: 42 or 48 dB, selectable, ref. -60 dBu input to Dante output (-20 dBFS nominal)
・Gain, configured for electret microphones: 22 or 30 dB, selectable, ref. -60 dBu input to Dante output (-20 dBFS nominal)
・Frequency Response: 50 Hz to 10 kHz, -3dB
・Distortion (THD+N): <0.02%
・Dynamic Range: 75 dB
Compressor:・Threshold: 1 dB above nominal level (-19 dBFS)
・Slope: 2:1
・Status LED: compressor active
Headphone Output:・Type: 2-channel
・Compatibility: intended for connection to stereo (dual-channel) or monaural (single-channel) headsets with nominal impedance of 50 ohms or greater
・Maximum Output Voltage: 3.8 Vrms, 1 kHz, 150 ohm load
・Frequency Response: 20 Hz to 10 kHz, -3dB
・Distortion (THD+N): <0.002%
・Dynamic Range: >100 dB

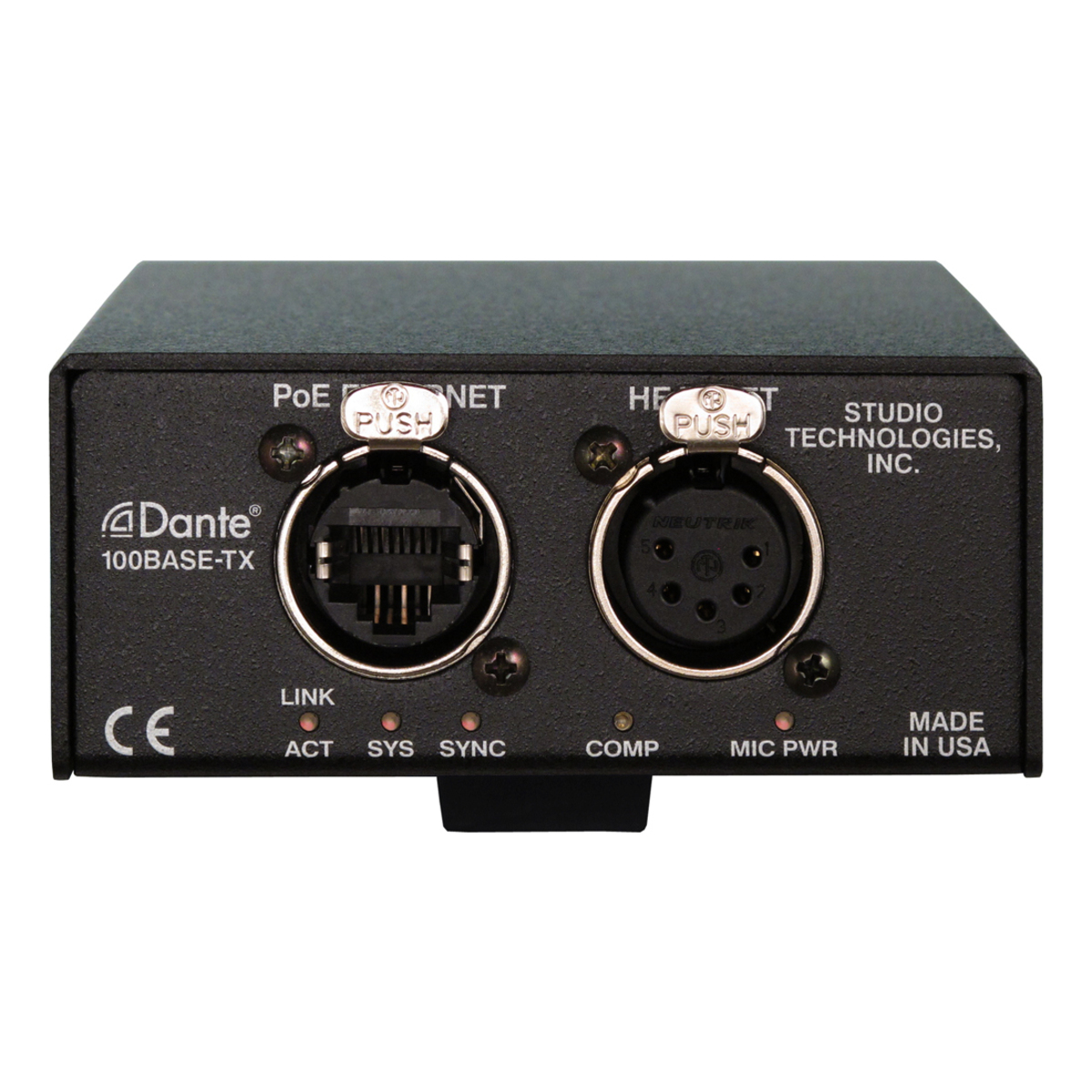

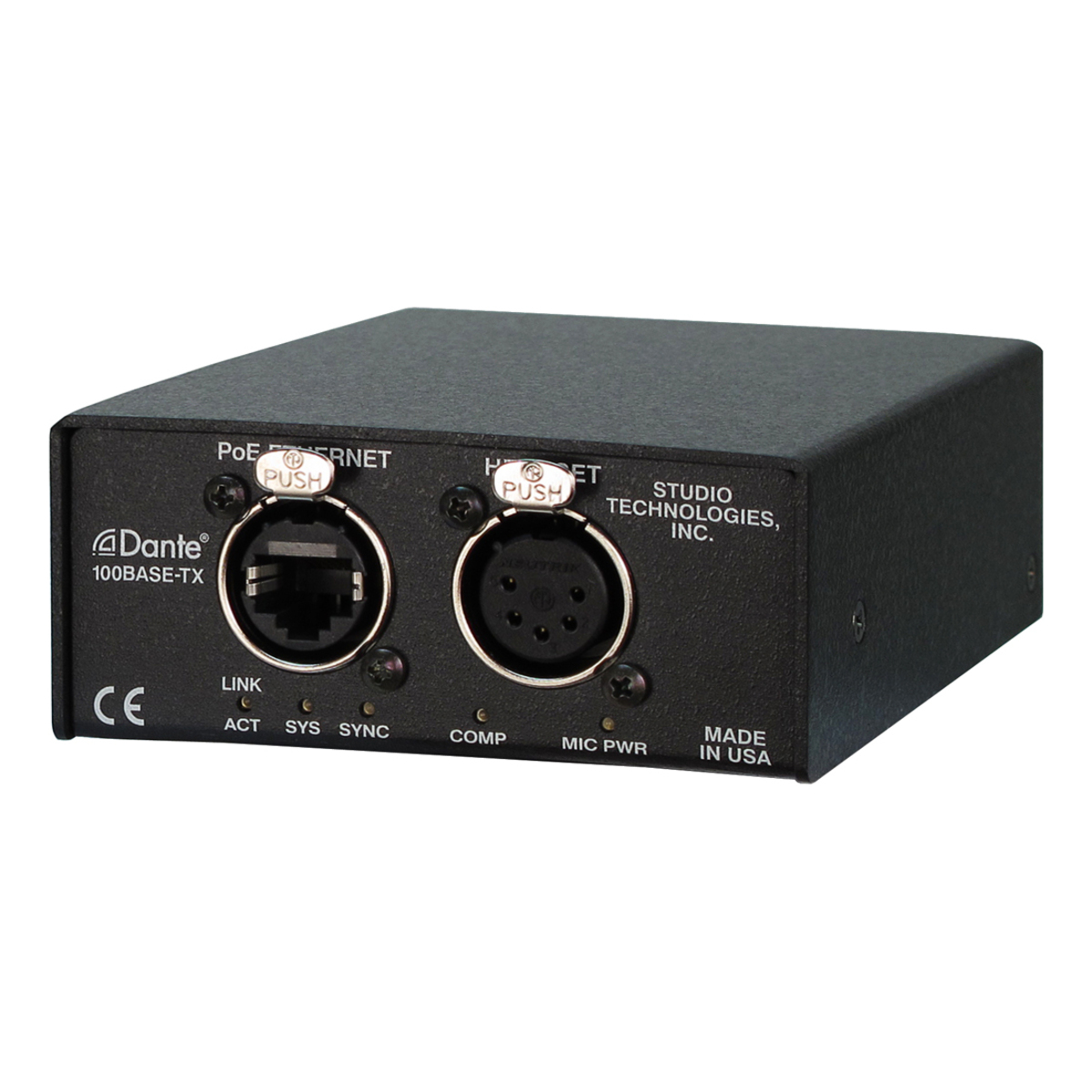

Connectors:・Headset: 5-pin female XLR
・Ethernet: Neutrik NE8FBH etherCON RJ45 receptacle
・USB: type A receptacle (located inside Model 374A's enclosure and used only for application firmware updates)
Configuration ・requires Studio Technologies STcontroller software application, version 1.06.00 and later (STcontroller is compatible with Windows version 7 and later)
Environmental:・Operating Temperature: 0 to 50 degrees C (32 to 122 degrees F)
・Storage Temperature: -40 to 70 degrees C (-40 to 158 degrees F)
・Humidity: 0 to 95%, non-condensing
・Altitude: not characterized
Dimensions (Overall):・3.6 inches wide (9.2 cm)
・1.6 inches high (4.0 cm)
・4.8 inches deep (12.6 cm)
Mounting・intended for portable applications; contains integral belt clip; optional MBK-01 Mounting Bracket Kit allows Model 374A to be permanently mounted
Weight ・0.6 pounds (0.3 kg)
