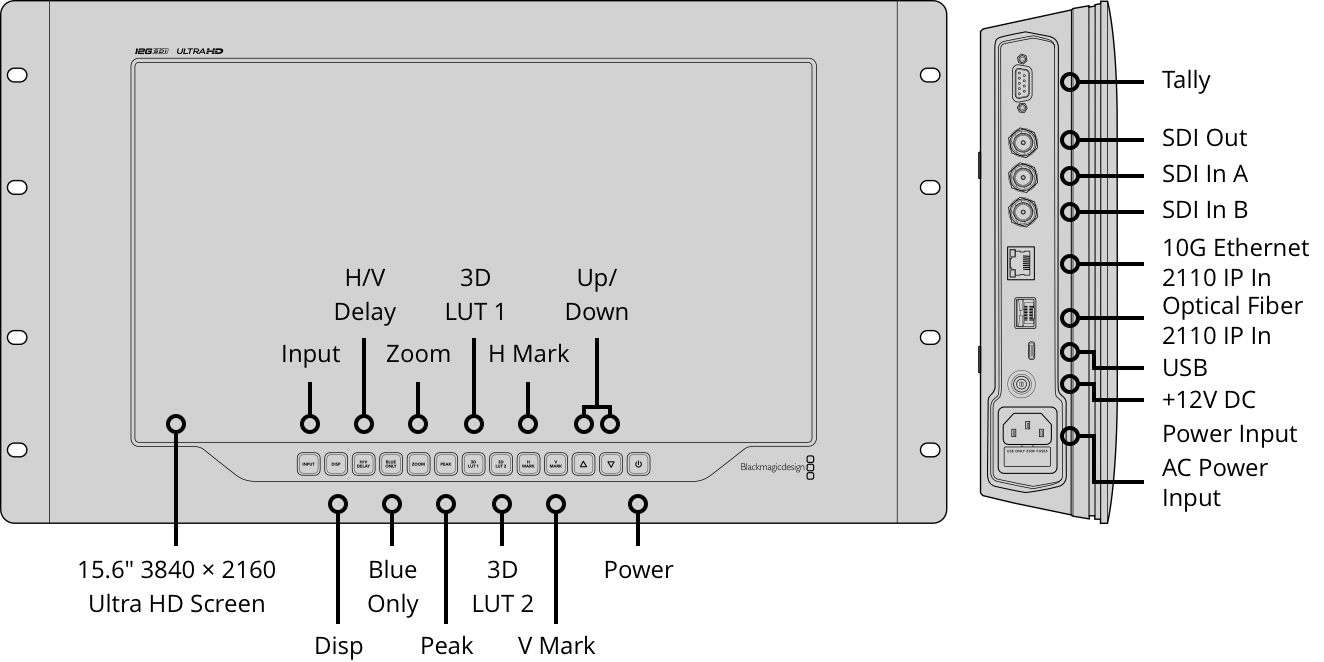

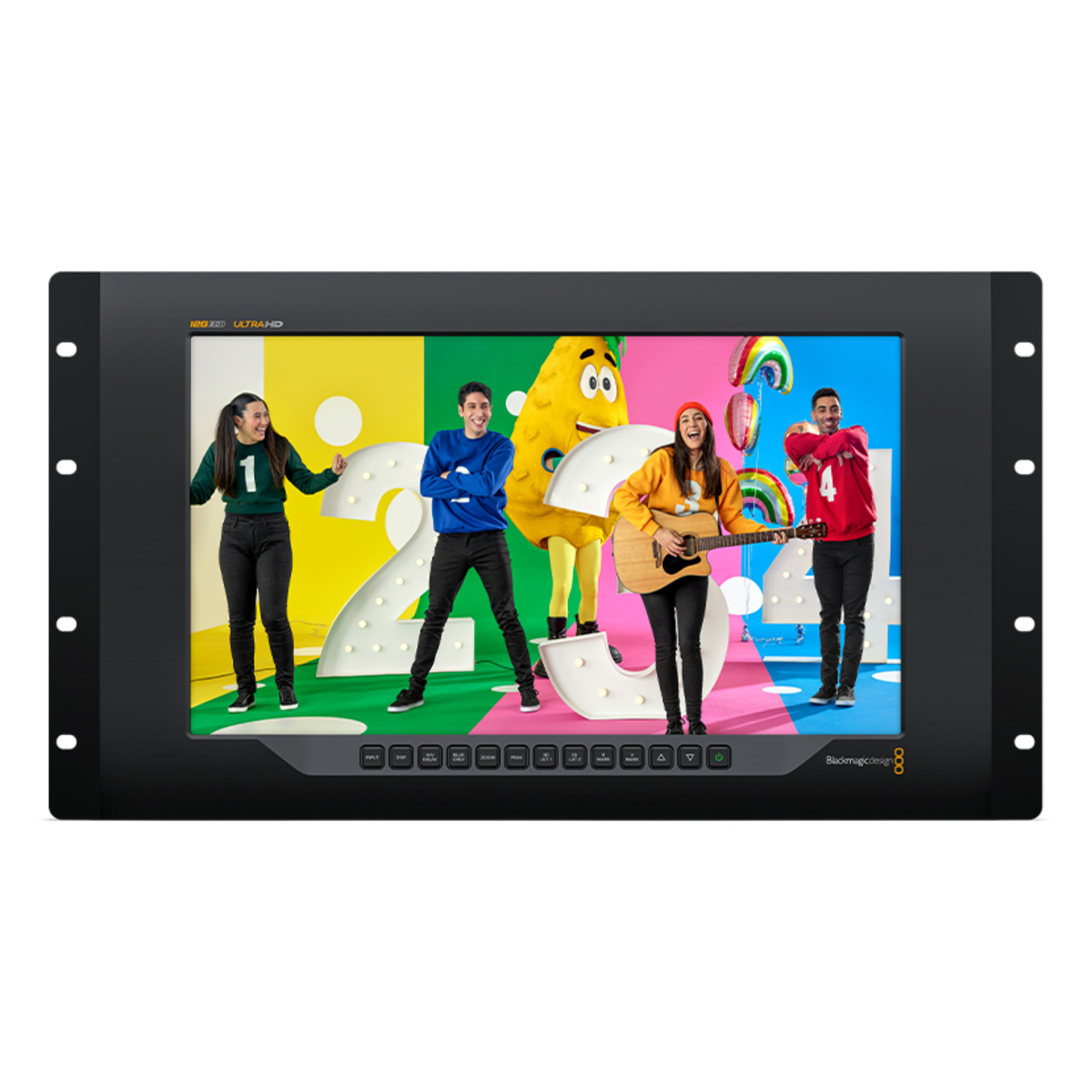

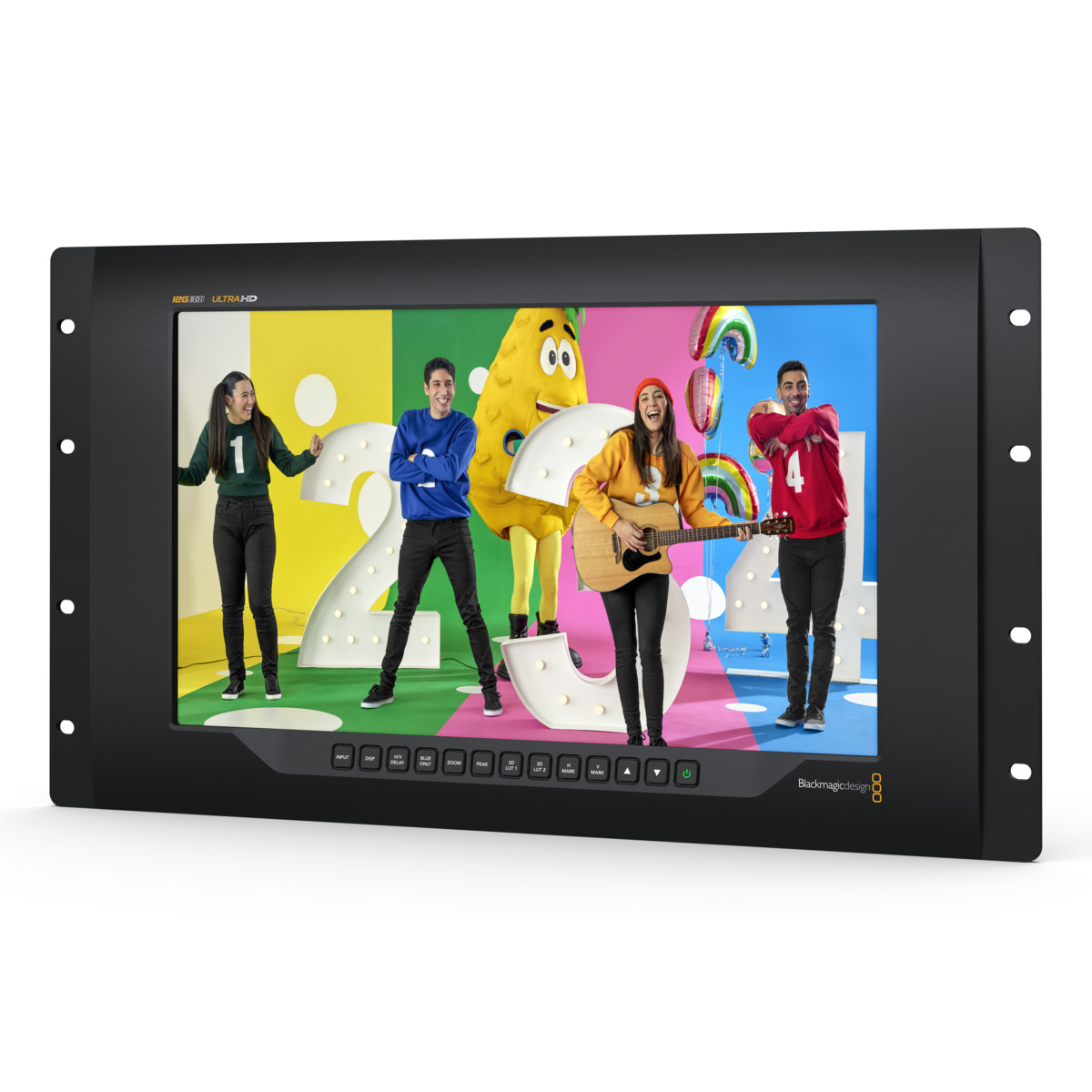

SmartView 4K G3は、12G-SDIとSMPTE-2110 IPビデオ入力の両方を備えた初のUltra HD放送用モニターです。SmartView 4K G3は、IPベースの放送システムだけでなく、最大2160p60までの12G-SDIプロフェッショナルビデオ機器に直接接続でき、放送やライブプロダクションに最適です。ACおよび12V DC電源接続、3D LUT、フォーカスピーキング、H/Vディレイ、ブルーのみ、フレーミングガイドなどのモニタリングコントロールを搭載しています。

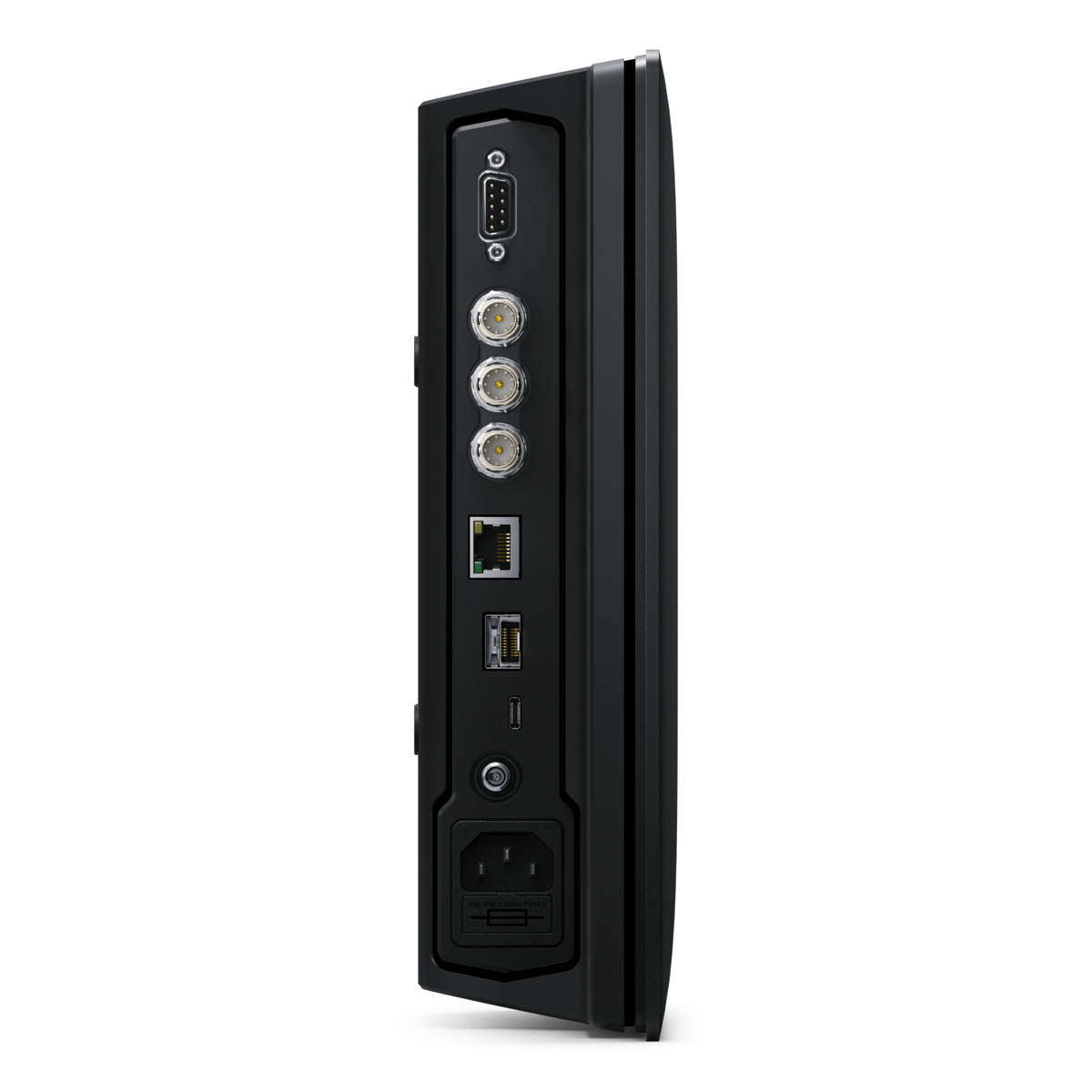

SDI入力
2
Blackmagicの12G-SDI製品との使用に推奨されるケーブルの概要は、ここをクリックしてください。
SDI出力
1 loop out.
Reclocked video output that automatically switches to input selection.
SDIレート
270Mb, 1.5G, 3G, 6G, 12G.
Optical Video Input
SFP Optical Fiber connector cage.
Supports 2110 IP video and optical SDI.
対応マルチレート
Auto detection of 4K, Ultra HD, 2K, HD or SD inputs.
アップデートおよびコンフィギュレーション
USB
イーサネット
1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in, configuration and firmware updates.
タリー
9-pin D connector
SD Format Support
525i59.94 NTSC, 625i50 PAL
対応HDフォーマット
720p50、720p59.94、720p60
1080i50、1080i59.94、1080i60
1080p23.98、1080p24、1080p25、1080p29.97、1080p30、1080p47.95、1080p48、1080p50、1080p59.94、1080p60
1080PsF23.98、1080PsF24、1080PsF25、1080PsF29.97、1080PsF30
2K Format Support
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI
2KPsF23.98, 2KPsF24, 2KPsF25, 2KPsF29.97, 2KPsF30
Ultra HD Format Support
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
4K Format Support
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI
SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level A and B, SMPTE 425M, SMPTE 2082.
SDI Color Space
REC 601, REC 709
SDI Auto Switching
Automatically selects between SD, HD, 3G, 6G and 12G-SDI.
Video Sampling
4:2:2 and 4:4:4
SMPTE 2110-20 (Uncompressed Video)
IGMP v2
SMPTE 2110-21 (Traffic Shaping)
Sender: Narrow
Receiver: Narrow, Wide Synchronous, Asynchronous
SMPTE 2110-30 (PCM)
Audio Conformance level: Level C
SMPTE 2110-40 (Ancillary Data)
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Precision Time Protocol(PTP)
IEEE 1588‑2008 (PTP v2)
ST 2059‑1
ST 2059‑2
NMOS IS‑04 Discovery and Registration
v1.3.2
Peer‑to‑peer via mDNS/DNS‑SD
NMOS IS-05 Connection Management
v1.1.2
NMOS BCP‑002‑01
Natural Grouping
NMOS BCP‑004‑01
Receiver capabilities
Codec
Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video.
Internal Software Upgrade
Via included firmware updater software.
Settings Control
Via USB or Ethernet.
・Mac 12.0 Monterey、Mac 13.0 Ventura あるいはそれ以降のバージョン
・Windows 10 64-bit、Windows 11
Display Element
15.6" TFT Active Matrix LCD
Display Resolution
3840 x 2160 pixels
Response
25 ms
Contrast Ratio
1000:1
Color Depth
16.7 million colors
Power Supply
1 x Internal 100 - 240V AC 50/60Hz.
電源入力
1 x IEC C14 socket for AC power.
1 x 5.5mm barrel +12V DC In for external power supply or battery use.
Power Consumption
24 W

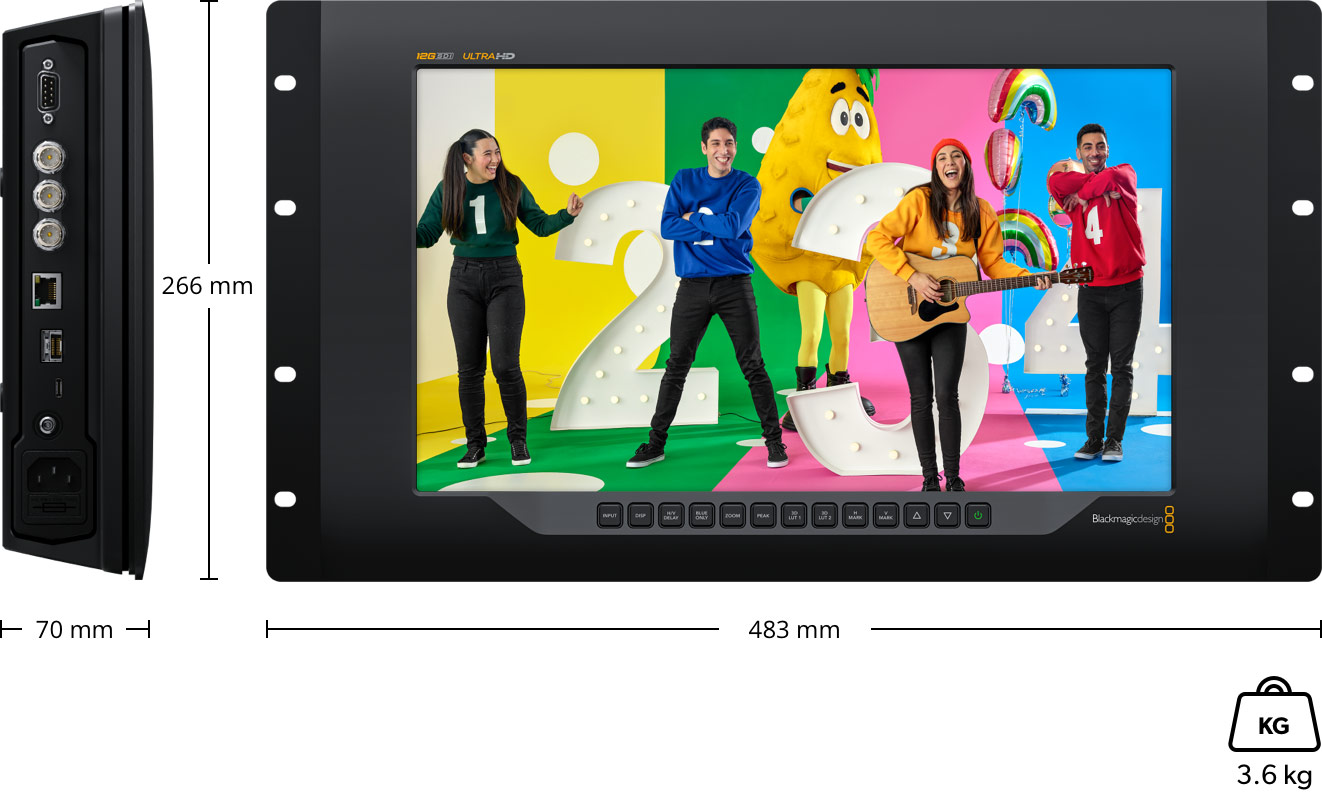

6 rack units.
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing
・SmartView 4K G3
・Welcomeウォレット(ソフトウェアのダウンロード用のQRコード付き)
12 Months Limited Manufacturer's Warranty.
