Model 209

258,500
3,878 ポイント
お取り寄せ(お問い合わせ時点で納期をご案内致します)
ハッシュタグ
この製品を見た人はこの製品を見ています

Dante対応タレント・コンソール (メイン出力 x1 トークバック出力 x1)

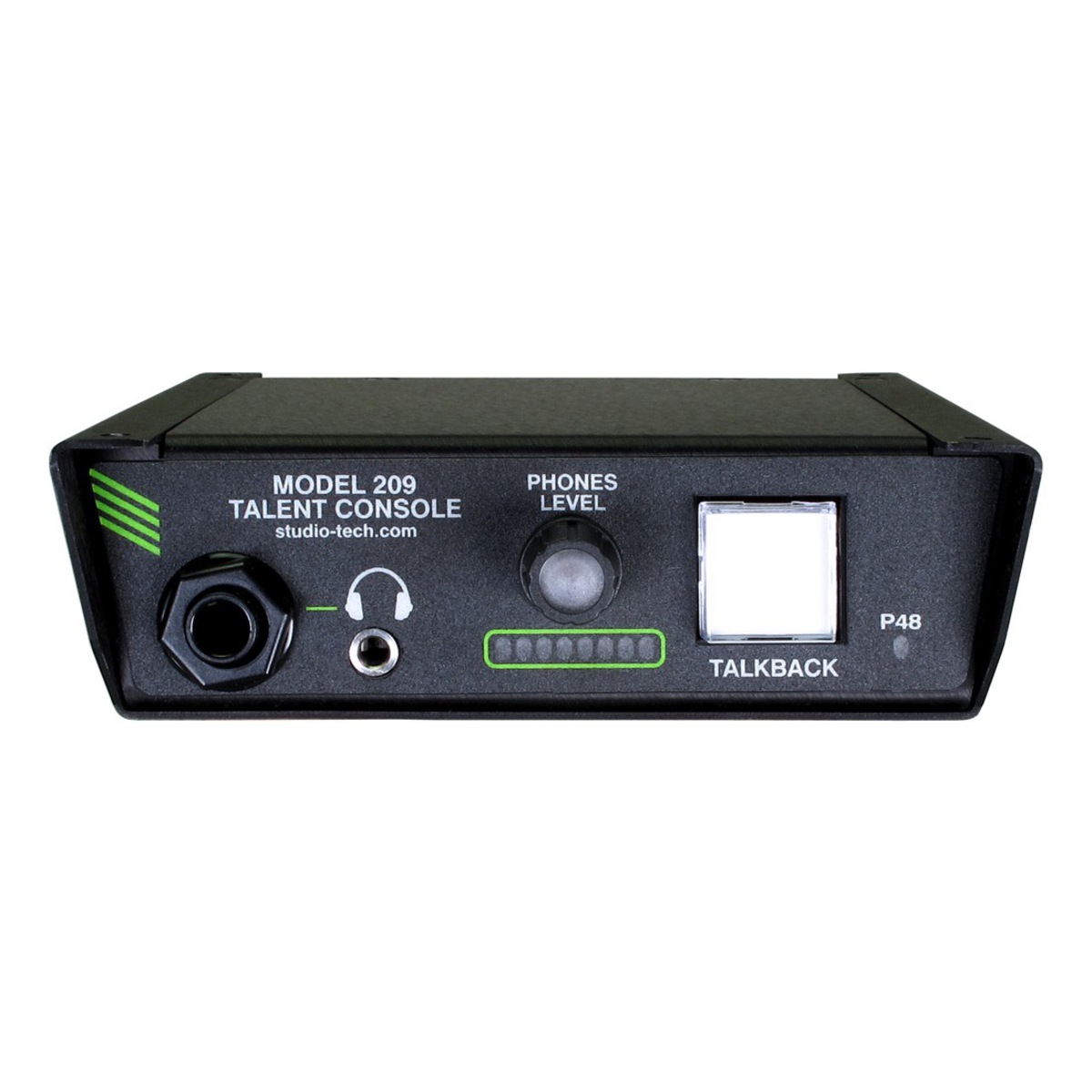

Model 209 Talent Consoleは、ポッドキャスト、テレビスタジオ、およびREMIアプリケーション用に最適化されたコンパクトなオーディオコントロールセンターです。

スタッフコメント

Model 209は、P48パワーと堅牢なステレオヘッドフォン出力を備えた高性能マイクプリアンプを組み込んでおり、Dante audio-over-Ethernetテクノロジーが利用されているアナウンサーとコメンテーターをサポートします。 機能には、メインおよびトークバックオーディオ出力チャネル、2つのオーディオ入力チャネル、汎用入力(GPI)、および12ボルトのDCタリー出力が含まれます。STcontrollerアプリケーションを使用して構成され、 パーソナルコンピューターAPIを使用したリモートコントロールをサポートします。 ユニットには、データインターフェイスと電力の両方を供給するために、Power-over-Ethernet(PoE)を使用したイーサネット接続が必要です。 卓上または他の平らな面の下に取り付けることを目的とした軽量の筐体に収納されています。

特長

・Dante audio-over-Ethernet テクノロジー搭載

・ゲイン調整可能な高性能マイクプリアンプ

・サイドトーン付きヘッドフォンモニタリング機能

・ブームアームのステータスLEDを直接駆動できるタリー出力を装備

・ポッドキャスト、ナレーションブース、REMIなどの用途に最適

・優れたオーディオ品質

・STcontrollerアプリケーションによる豊富な機能設定

・PoE(Power-over-Ethernet)給電対応

製品仕様

仕様Power Source:
Power-over-Ethernet (PoE): class 2 (low power, ≤6.49 watts) per IEEE® 802.3af

Network Audio Technology:
Type: Dante audio-over-Ethernet
AES67-2018 Support: yes, selectable on/off
Dante Domain Manager (DDM) Support: yes
Bit Depth: up to 32
Encoding Choices: PCM 16, PCM 24, or PCM 32
Sample Rate: 48 or 96 kHz
Pull-Up/Down Support: no
Dante Transmitter (Output) Channels: 2
Dante Receiver (Input) Channels: 2
Dante Audio Flows: 4; 2 transmitter, 2 receiver
Internal Digital Audio Processing: 32-bit, fixed
Transmitter (Output) and Receiver (Input) Nominal Level: –20 dBFS

Network Interface:
Type: 100BASE-TX, Fast Ethernet per IEEE® 802.3u (10BASE-T and 1000BASE-T (GigE) not supported.)
Power-over-Ethernet (PoE): Per IEEE 802.3af
Data Rate: 100 Mb/s (10 Mb/s and 1000 Mb/s not supported)

Analog Microphone Input:
Compatibility: dynamic or phantom-powered microphones
Type: balanced, capacitive coupled
Impedance: 3.6 k (3600) ohms, nominal
Gain: 20 to 65 dB in 1-dB steps
Frequency Response: 20 Hz to 22 kHz, +0/–1 dB
Distortion (THD+N): <0.0004 %, 1 kHz, –4 dBFS output, 20 dB gain, 22 kHz BW
Dynamic Range: 120 dB, ref 0 dBFS output, 20 dB gain, A-weighted Phantom Power: P48 per IEC 61938 standard, on/off selectable with status LED

Headphone Output:
Type: dual-channel (stereo)
Compatibility: intended for connection to stereo (dual-channel) or monaural (single-channel) headphones, headsets, or earpieces with nominal impedance of 50 ohms or greater
Maximum Output Voltage: 3.5 Vrms, 1 kHz, with load of 150 ohms
Frequency Response (TOX Filter Disabled): 20 Hz to 20 kHz, +0/–1 dB
Frequency Response (TOX Filter Enabled): 20 Hz to 10 kHz, –3 dB at 10 kHz
Distortion (THD+N): <0.002 %
Dynamic Range: >102 dB

Remote Control Inputs: 2
Functions: configurable
Type: active low, 1 mA maximum, input pulled up to 3.3 volts DC by way of 3.4 k (3400) ohm resistor

Tally Outputs: 2
Functions: independently configurable, can follow STcontroller On/Off buttons, Dante main transmitter (output) status, remote control input status, or TOX (tone receive) status
Type: active high, active low, differential – active high, differential – active low, configurable
High Output: 100 mA maximum at 12 volts DC
Low Output: 100 mA sink

TOX (Tone Receive) Tally Activation:
Method: in-band audio tone
Source: Dante receiver (input) Headphone Ch1 or Dante receiver (input) Headphone Ch2, selectable
Tone Characteristics: 18 to 23 kHz, nominal
Minimum Level: –25 dBFS, nominal
Detect Time: 10 milliseconds, minimum

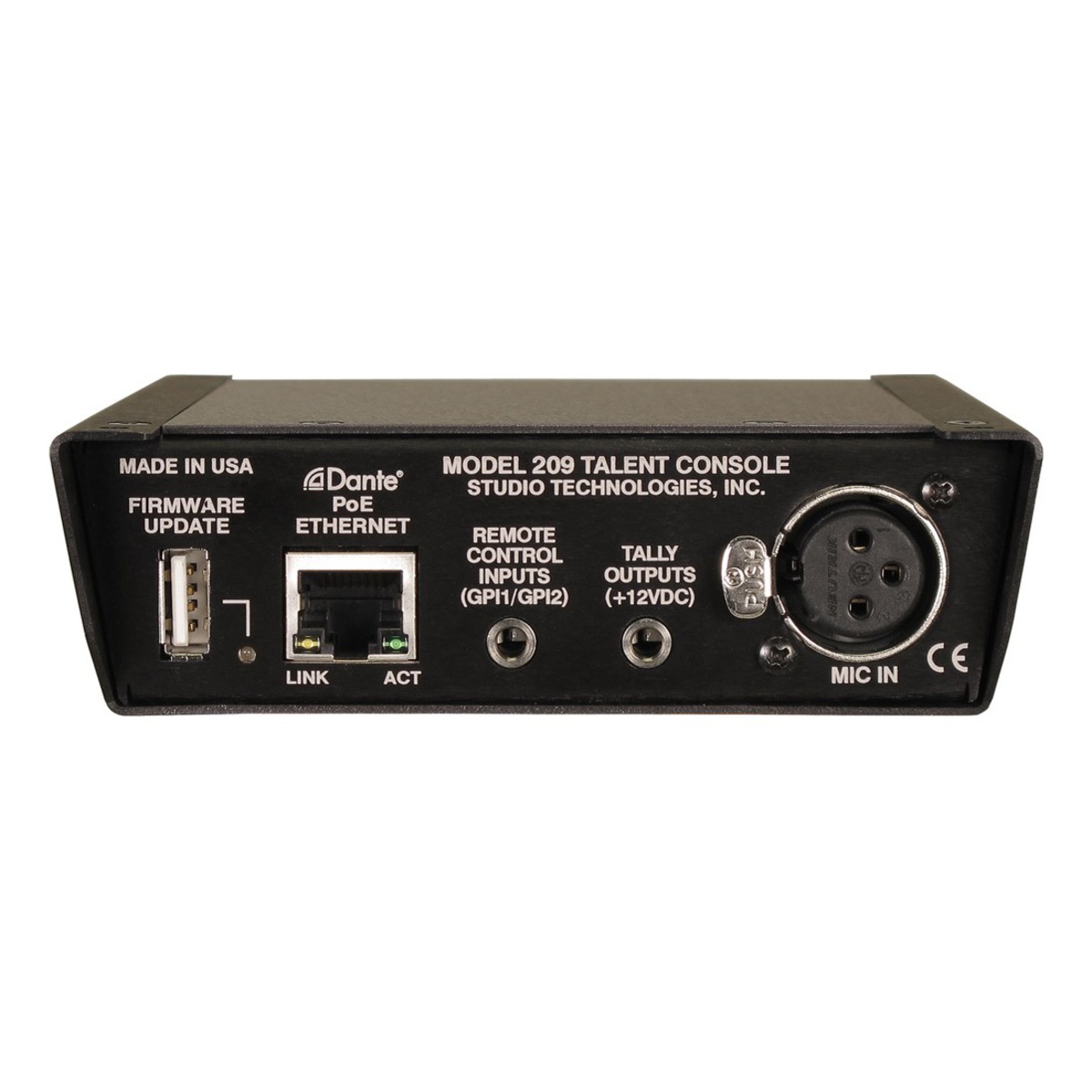

Connectors:
Ethernet: RJ45 jack
Microphone Input: 3-pin female XLR
Headphone Output: 3-conductor (TRS) ¼-inch jack and 3-conductor (TRS) 3.5 mm jack
Remote Control Inputs: 3-conductor (TRS) 3.5 mm jack
Tally Outputs: 3-conductor (TRS) 3.5 mm jack
USB: type A receptacle (used only for updating firmware)

Configuration: Studio Technologies' STcontroller personal computer application

Ethernet Control: UDP commands allow support of remote control and status indication functions

Dimensions (Overall):
4.7 inches (12.0 cm) wide (maximum)
1.4 inches (3.6 cm) high
5.8 inches (14.7 cm) deep
6.0 inches (15.2 cm) deep (overall with knob)

Installation:
intended for under-surface mounting in tabletop or similar applications

Weight:
0.55 pounds (0.26 kg)
