Model 5202 Dante to Phones and Line Output Interfaceは、メディアネットワーク技術Dante® audio-over-Ethernet を利用したアプリケーションをサポートする汎用オーディオデバイスです。Danteに関連する2つのオーディオチャンネルをModel 5202に割り当てることができ、ヘッドフォン出力とバランスのとれたラインレベル出力を提供します。ヘッドフォンやラウドスピーカーによるシンプルなモニタリングから、放送局やスタジアムAV、企業内オーディオシステムとの連携まで、ほぼすべてのオーディオアプリケーションに対応する音質を実現しています。入力された2つのオーディオ・チャンネルのレベルは、多段階のLEDメーターで確認できます。
コンパクトで軽量なデザインのため、5202型はポータブルまたはデスクトップで使用でき、固定されたアプリケーションでは恒久的なソリューションとして展開することができます。標準的なコネクターにより、迅速かつ信頼性の高い展開が可能です。このユニットは、データインターフェースとPoE(Power-over-Ethernet)電源の両方を供給するためにイーサネット接続を必要とするだけです。
・Dante audio-over-Ethernet テクノロジー
・ヘッドホンおよびバランスライン出力
・高音質設計
・PoEにより電源供給

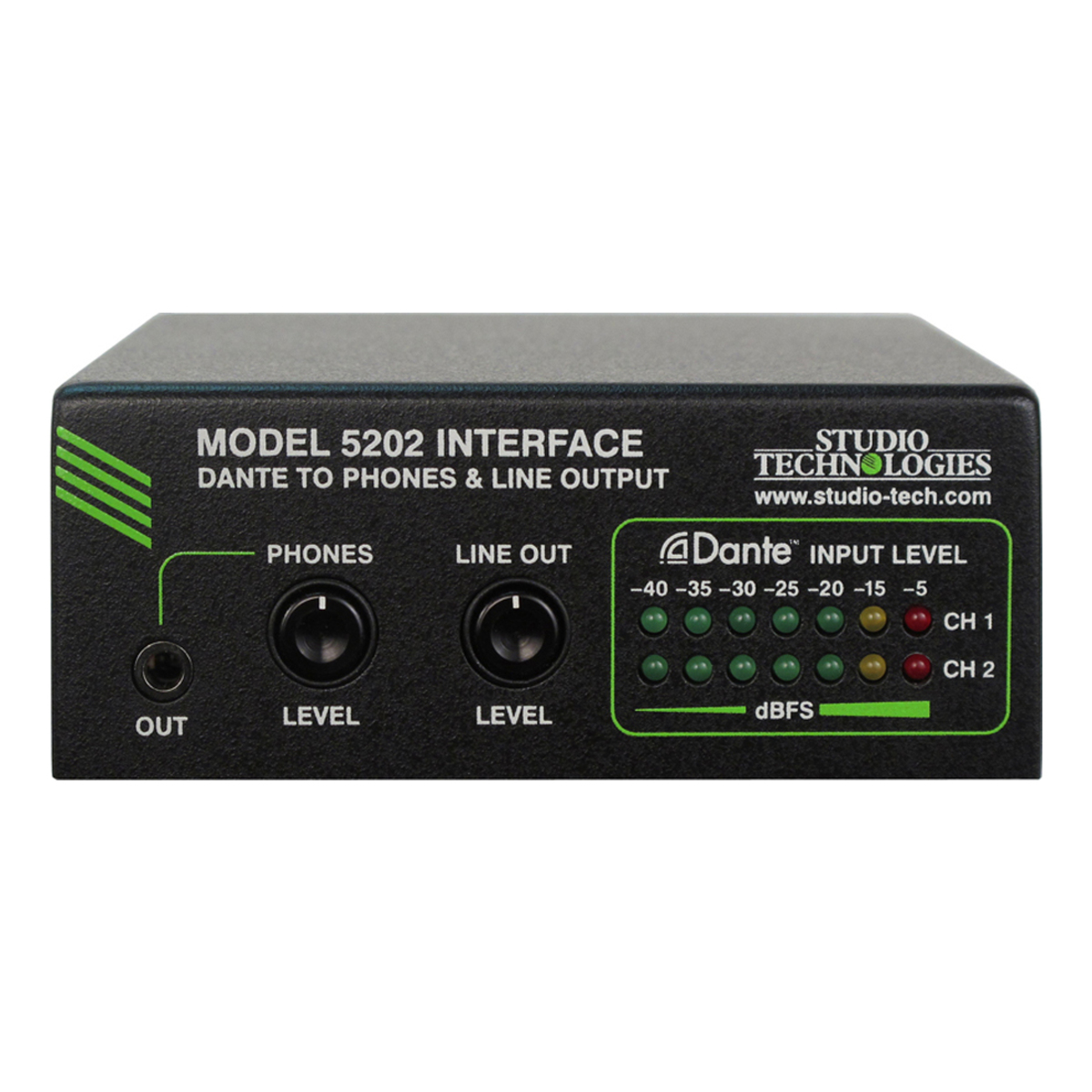

・レベルメーター搭載
・コンパクトな筐体
Network Audio Technology | ・Type: Dante audio-over-Ethernet ・Bit Depth: up to 24 ・Sample Rates: 44.1, 48, 88.2, and 96 kHz ・Number of Receiver (Input) Channels: 2 ・Dante Audio Flows: 2 receiver ・Digital to Analog Equivalence: at unity gain a Dante digital input of -20 dBFS results in an analog output of +4 dBu |
---|---|
Network Interface | ・Type: twisted-pair Ethernet with Power-over-Ethernet (PoE) ・Data Rate: 100 Mb/s (10 Mb/s Ethernet not supported) |
Power | ・Power-over-Ethernet (PoE) per IEEE 802.3af class 1 (very low power, ≤3.84 watts) |
General Audio Parameters | ・Frequency Response: 20 Hz to 20 kHz, ±0.5 dB, Dante to line output ・Distortion (THD+N): 0.01%, measured at 1 kHz, +4 dBu, Dante to line output ・Dynamic Range: >100 dB, A-weighted, Dante to line output |
Headphone Output | ・Type: stereo, configured to drive headphones through 100 ohm series resistors ・Compatibility: intended for connection to headphones with impedance of 100 ohms or greater ・Level: adjustible using rotary level control ・Maximum Voltage: 8 Vpp, 100 ohm load |
Line Outputs: 2 | ・Type: electronically balanced, capacitor-coupled, intended to drive balanced or unbalanced loads of 2 k ohms or greater ・Source Impedance: 200 ohms ・Nominal Level: adjustable using rotary level control, +4 dBu @ 100% rotation ・Maximum Level: +24 dBu into 2 k ohms |
Meters: 2 | ・Function: displays level of Dante input signals ・Type: 7-segment LED, modified VU ballistics |

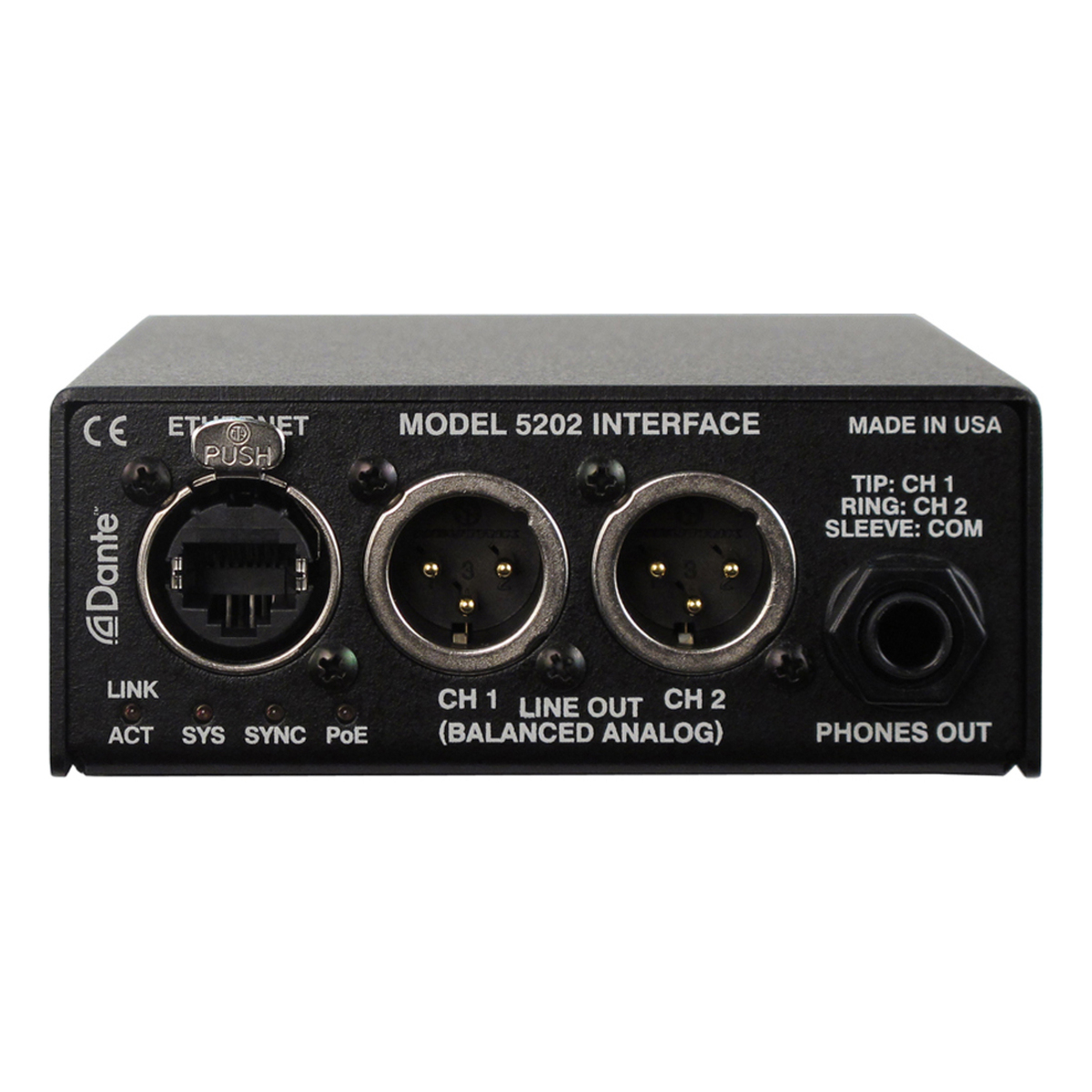

Connectors | ・Ethernet: Neutrik etherCON RJ45 ・Headphone Output: 3.5 mm and 1/4inch 3-conductor jacks ・Line Outputs: 3-pin male XLR |
Dimensions (Overall) | ・4.2 inches wide (10.7 cm) ・1.7 inches high (4.3 cm) ・5.1 inches deep (13.0 cm) |
Mounting Option | ・bracket kit |
Weight | ・0.8 pounds (0.35 kg) |
